ORA WALL 140

By KAIA

MAINLY SUITABLE FOR INSTALLATION ONTO PLASTER WALLS AND JOINERY. FOR FURTHER INFORMATION, PLEASE SEE ORA CEILING/WALL INSTRUCTIONS AND CONTACT SALES@KAIALIGHTING.COM.

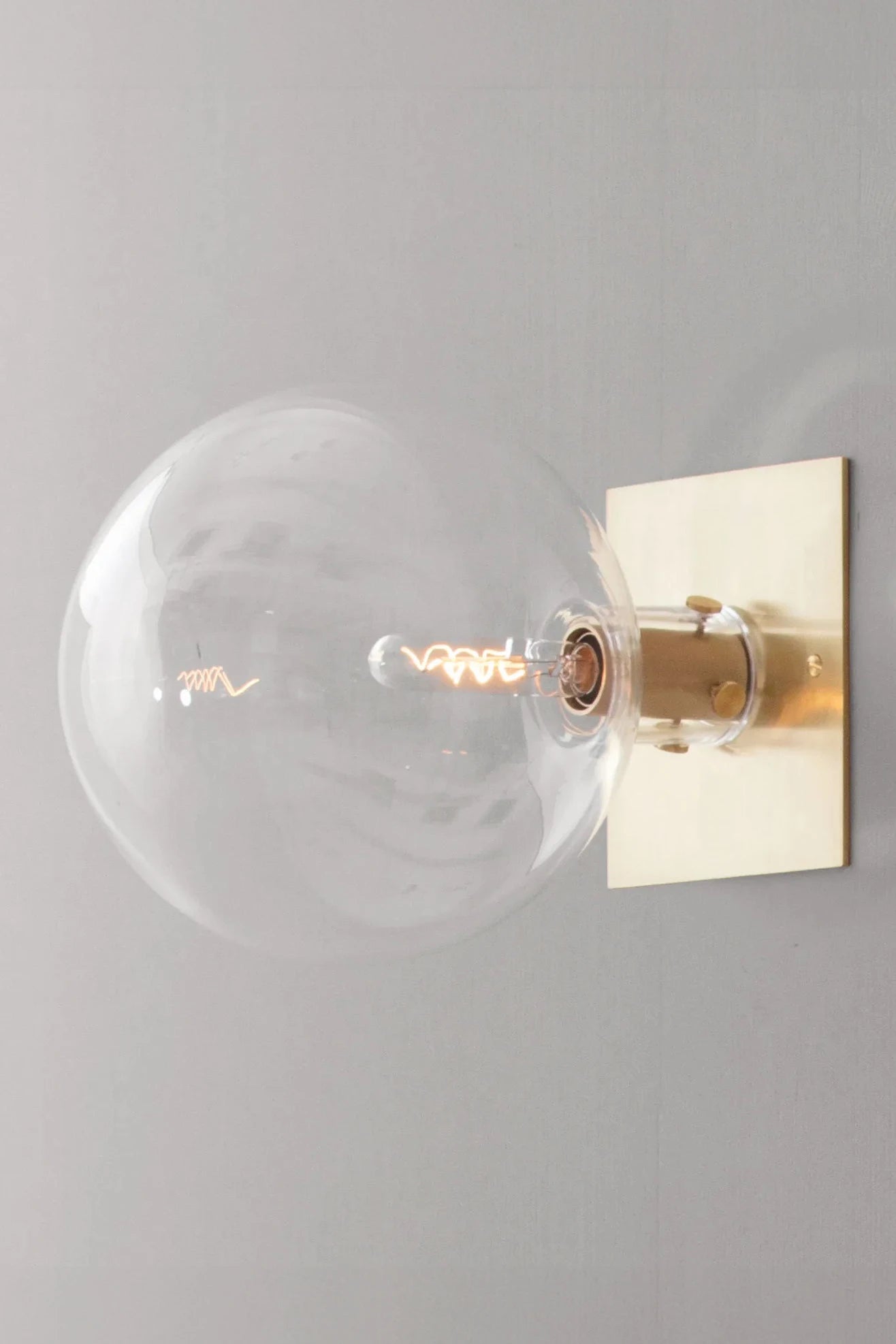

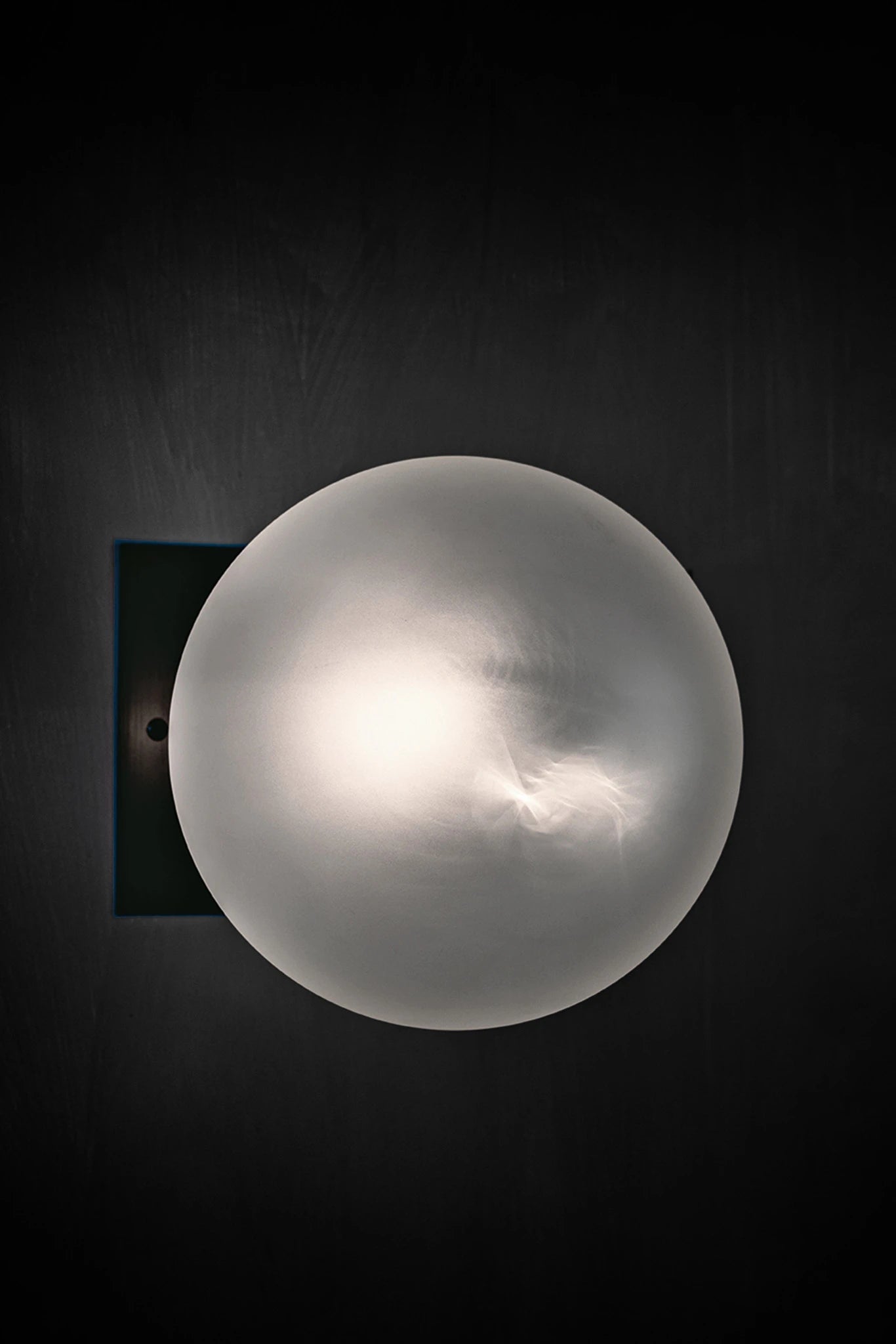

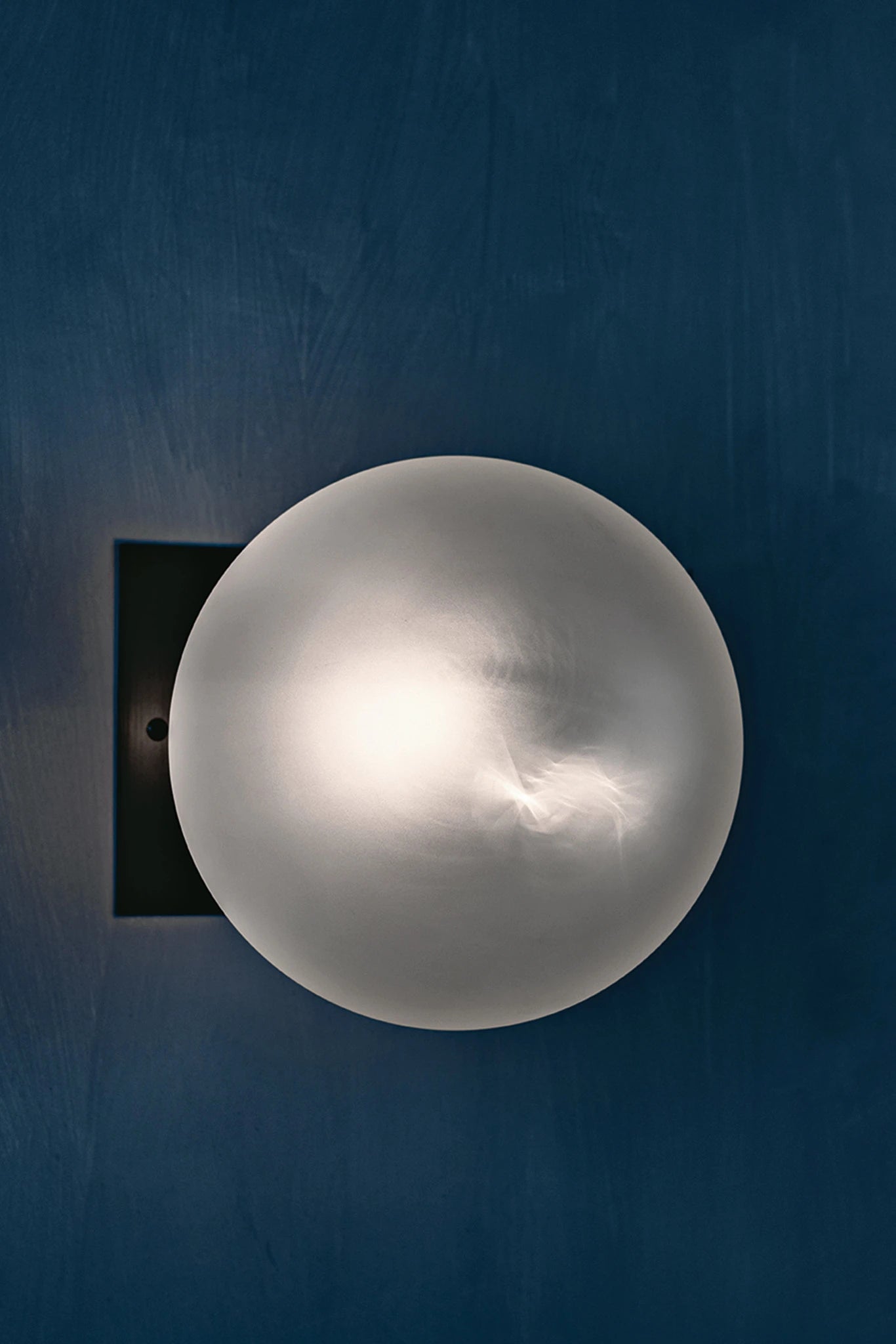

The essence of our ORA collection is encapsulated in one minimalist glass globe wall light. An oiled and waxed brass backplate holds a single hand-blown glass in place in ORA Wall 140, creating a refined wall light that is both contemporary and timeless. This is the smallest iteration in the ORA Wall series.

Designed by Peter Straka
Handmade by KAIA

Need a replacement lamp?

DOWNLOADS

PRODUCT SPECIFICATIONS

Dimensions:

140 mm x 140 mm x 250 mm (5.51 in x 5.51 in x 9.84 in)

Weight:

2 kg (4.4 lb)

Certification:

MATERIALS & FINISHES

ORA WALL 140 is made from Solid brass and available in the following finishes:

160 08 207 - Brushed oiled brass
160 08 209 - Black matte
160 08 201 - Brushed nickel
160 08 402 - Aged brass
160 08 208 - Bronze / Patinated brass

DELIVERY & RETURNS

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

MOUNTING INSTRUCTIONS

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made
connections. The Mains power must only be switched on once the fitting has been electrically connected to the driver.

1. Connect the unit to the mains.
2. Affix the plate to the ceiling/wall with 2 screws (hole size max. 4mm). Screws and wall plug provided.
3. Screw the bulb into the bulb holder. Slide the glass over the jacket and fix it with 4 screws.
3.A. Adjust the adjustable screws to the glass ball opening. There has to be a minimum of 1 mm
distance between the metal and the glass.
3.B. Screw in all bulbs, then switch on the circuit and test if the bulbs are functioning. With transportation, the lamp holders might get interfered, and the bulb will not connect correctly. In this case, please disconnect the lighting fixture from the circuit, and bend the contact brackets slightly to ensure that the bulbs and the lamp holder are connected.
3.C. Carefully secure the glass sphere.
3.D. Carefully fix loosely with the supplied knurled-head screw by hand.
Do not use a screwdriver. Do not screw too tightly, and ensure there is at least 1 mm tolerance between the glass and the screw.

CARE INSTRUCTIONS & PATINATION
