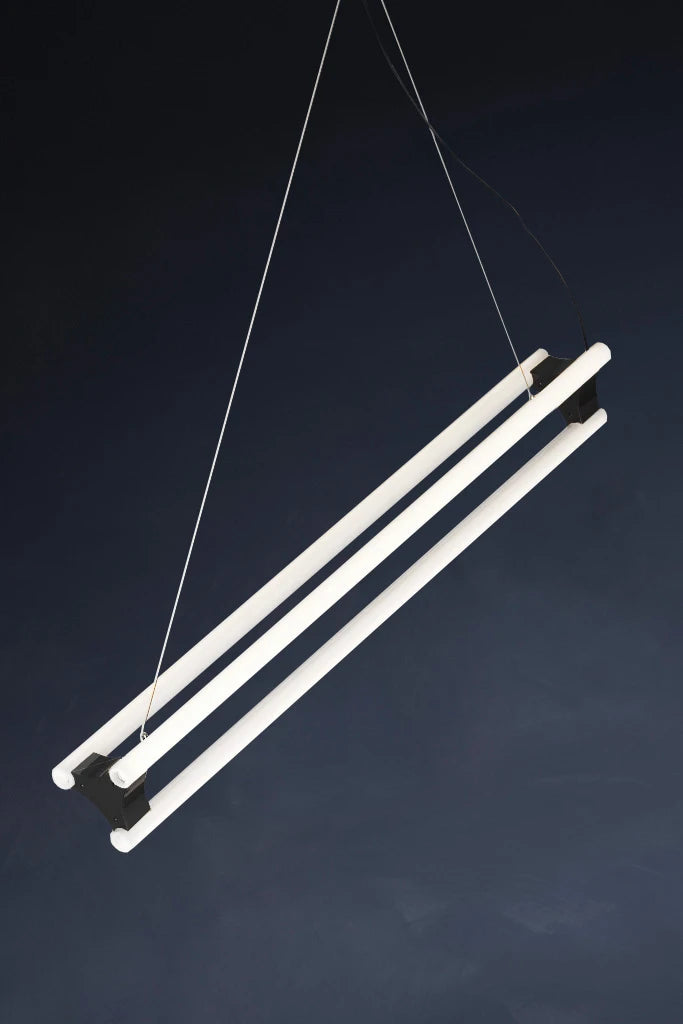

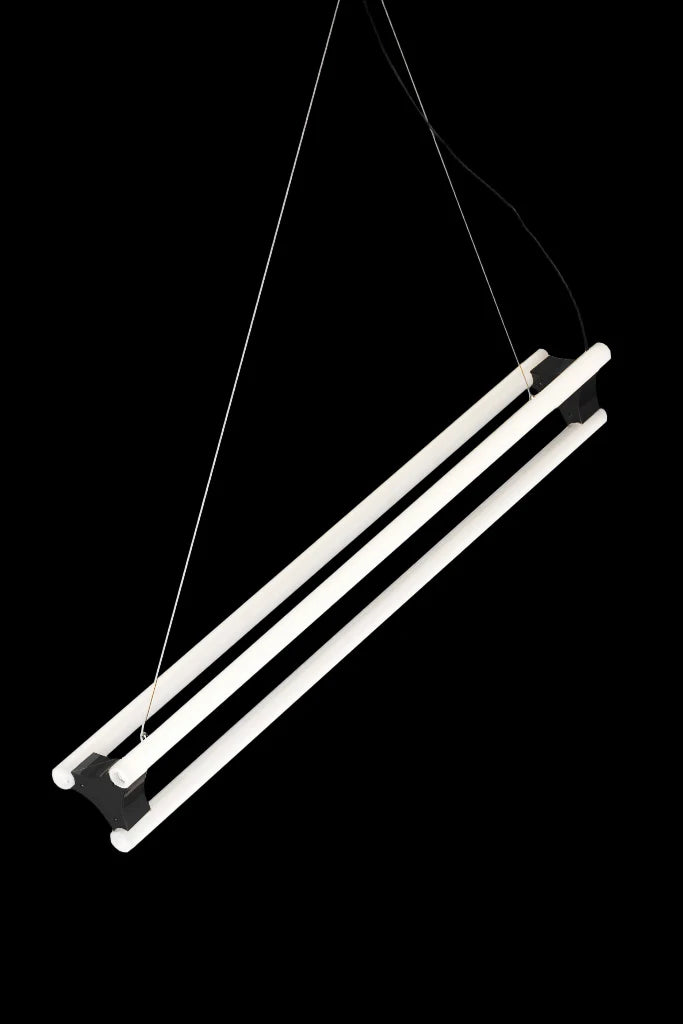

LIA SUSPENSION DIAGONAL 100

Dimensions:

1000 mm x 125 mm (39.37 in x 4.91 in)

Weight:

2.1 kg (4.6 lb)

Certification:

IP20 CE; ETL

LIA SUSPENSION DIAGONAL 100 is made from solid brass and available in the following finishes:

050 04 202 12 - Brushed brass c/w black fabric cable
050 04 209 12 - Blackened brass c/w black fabric cable
050 04 201 12 - Brushed nickel c/w black fabric cable
050 04 101 11 - Polished nickel c/w transparent cable

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.
Installation should be carried out by a qualified electrician.

Ensure all electrical connections are tight with no loose strands, including factory made connections.

The Mains power must only be switched on once the fitting has been electrically connected to the driver.

1. Fit the 3 lamps before starting the installation (see below).
2. Remove the base from the installation bracket.
3. Affix the bracket to the ceiling with 2 screws (hole size max. 4.5 mm, 50 mm apart
4. Connect the unit to the mains.
5. Fix the unit back on its base and re-tighten 2 screws on the side.

LAMP INSTALLATION
1. Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected. 2. Use supplied
fabric gloves to prevent any stains on the surface.
3. Whilst applying pressure push each socket into the lamp holder one at a time (see graphic).
4. Due to the risk of glass fracture, handle the lamps with care!

Under unfavourable conditions, these lamps can lead to acoustic noise. In case of resonance, even low noise can cause an audible effect. The installation, as well as the dimmer or the transformer (harmonics or electronic resonance), are possible influencing factors.
