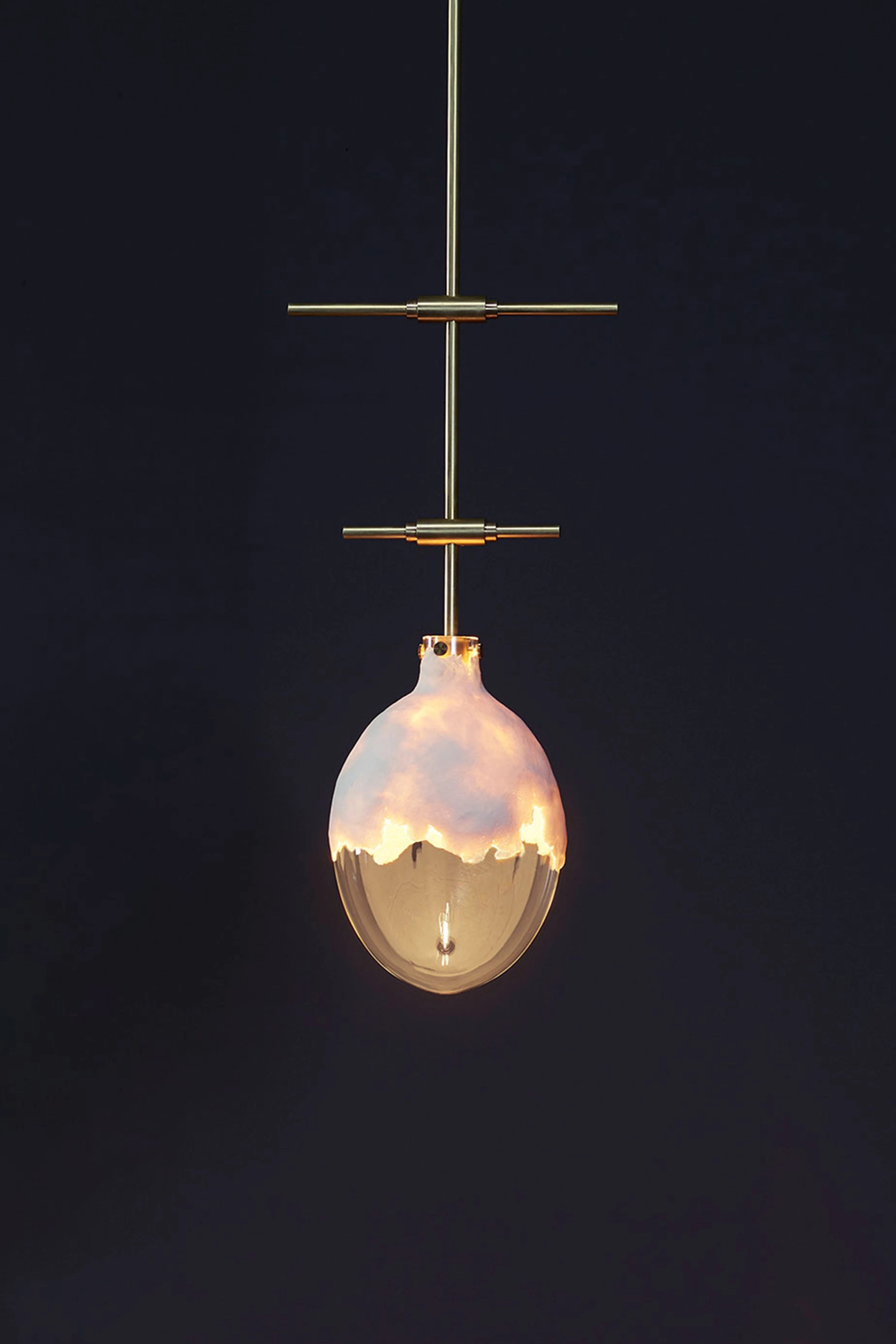

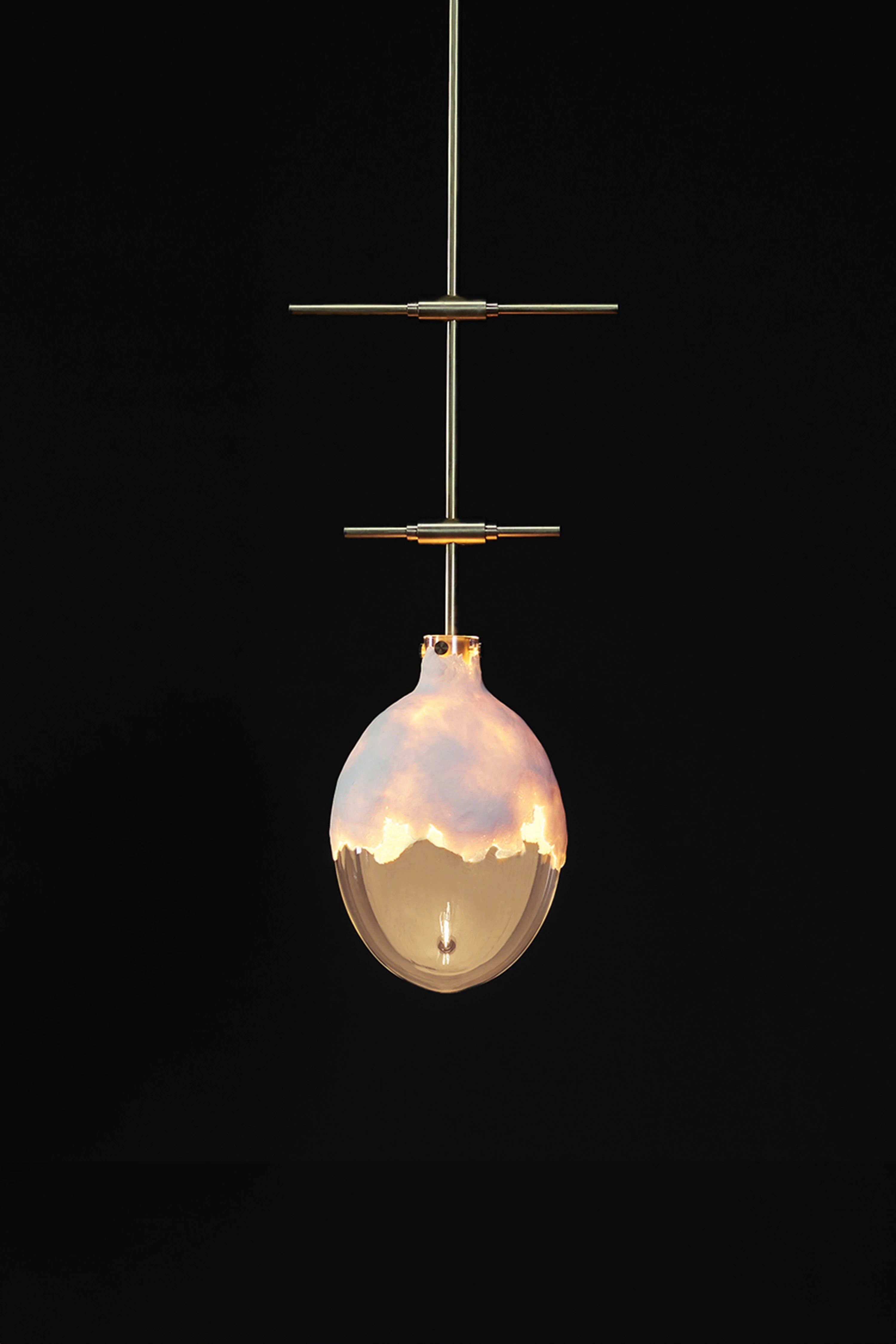

GLOW 1 PENDANT

Dimensions:

300 mm x 200 mm x 610 mm (11.21 in x 7.87 in x 24.01 in)

Weight:

3 kg (6.61 lb)

Certification:

IP20 CE

GLOW 1 PENDANT is made from Solid brass and available in the following finishes:

200 02 201 - Brushed nickel
200 02 207 - Oiled and waxed brass
200 02 402 - Aged brass
200 02 208 - Bronze / Patinated brass

Glass colour: clear glass

Other finishes available on request, including different coloured compounds of micro-paper - please contact sales@kaialighting.com.

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation ensure the relevant mains supply has been safely isolated/disconnected . Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections. The Mains power must only be switched on once the fitting has been electrically connected.

1. All three ceiling roses must be installed at the same time.
2. The cables only come out of one stem. The others can simply be screwed on.
3. Please turn the upper screw until it is tight! Do not turn the lighting fixture itself
4. Adjust the adjustable screws to the glass ball opening. There has to be a minimum of 1 mm distance between the metal and the glass.
5. Screw in all bulbs, then switch on the circuit and test if the bulbs are functioning. With transportation the lamp holders might get interfered and the bulb will not connect correctly. In this case please disconnect the lighting fixture from the circuit, bend the contact brackets slightly to ensure that the bulbs and the lamp holder are connected.
6. Carefully secure the glass sphere.
7. Carefully fix loosely with the supplied knurled-head screw by hand. Do not use a screw-driver. Do not screw too tightly, ensure there is at least 1 mm tolerance between the glass and the screw.
