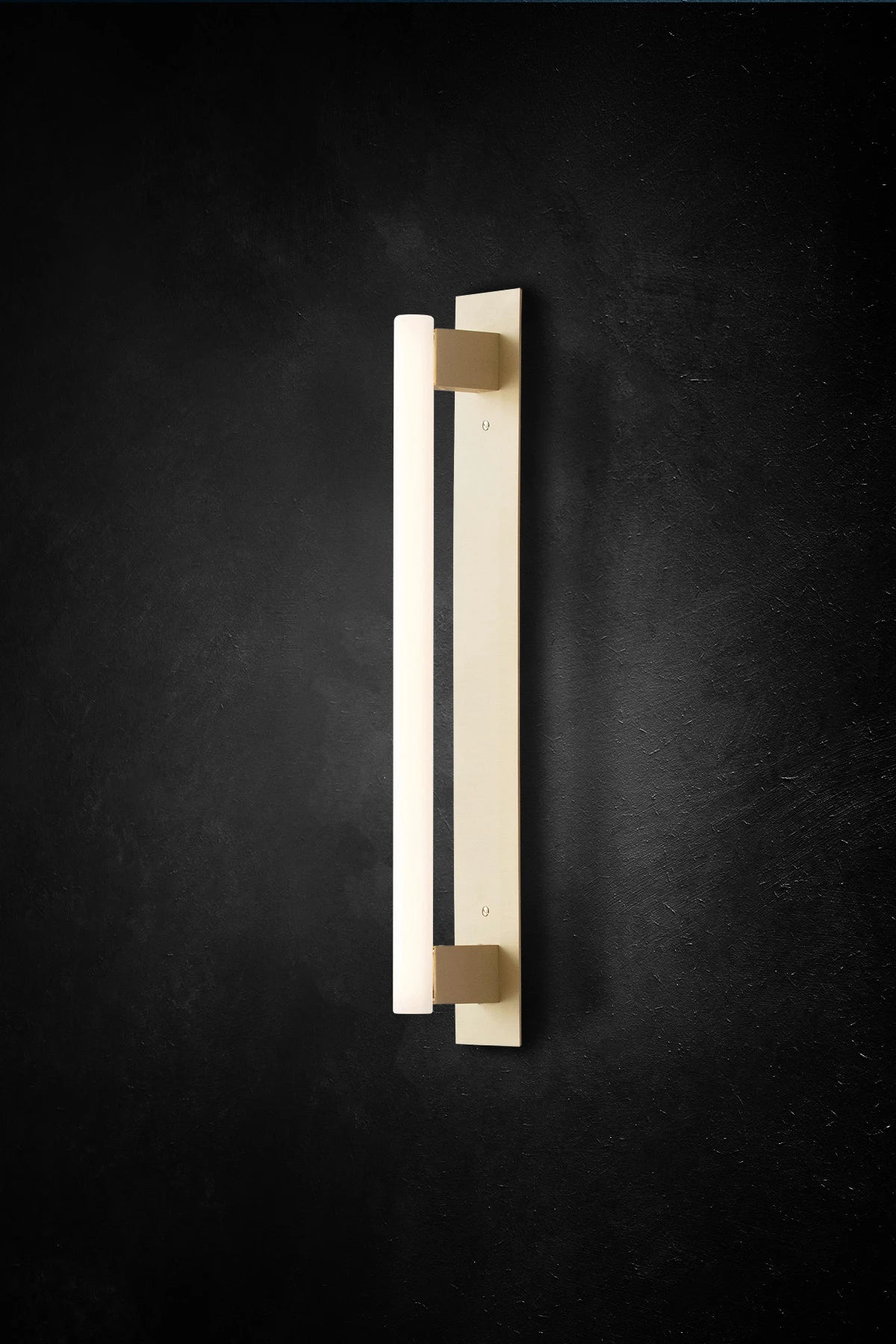

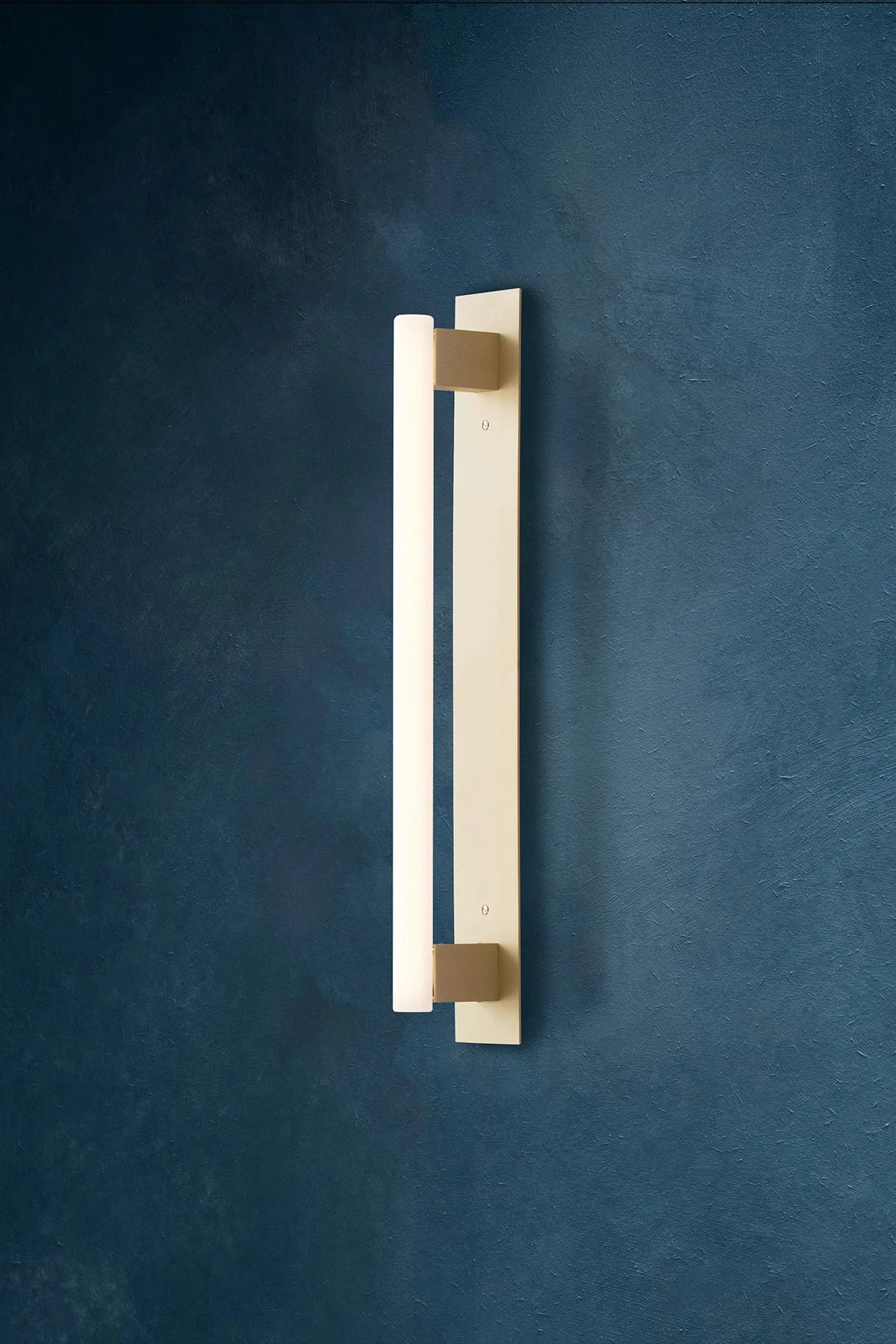

MEA WALL PLATE 50

Dimensions:

545 mm x 75 mm x 82 mm x 2 mm (21.45 in x 2.95 in x 3.23 in x 0.07 in)

Weight:

1.1 kg (2.4 lb)

Certification:

IP20 CE; ETL; (IP44 on request)

MEA WALL PLATE 50 is made from solid brass and available in the following finishes:

040 06 101 - Polished nickel
040 06 101 - Brushed nickel
040 06 202 - Brushed brass
040 06 402 - Aged brass
040 06 208 - Bronze / Patinated brass
040 06 209 - Black matte

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections.

1. Make sure to have sufficiently large room (30 mm x 7 mm) for the screws and wiring on the backside of the plate
2. A. Pull the wiring through the centre hole.
B. Connect the units to the mains.
C. Ensure that both Earth Wires are connected.
3. Affix the plate to the wall/ceiling with 2 screws (hole size max. 4 mm).
4. Gently push the socket into the lamp holder.

Mainly suitable for installation onto plaster walls and joinery. If no plaster wall and joinery is available, a frame can be added.

For further information, please contact sales@kaialighting.com.
