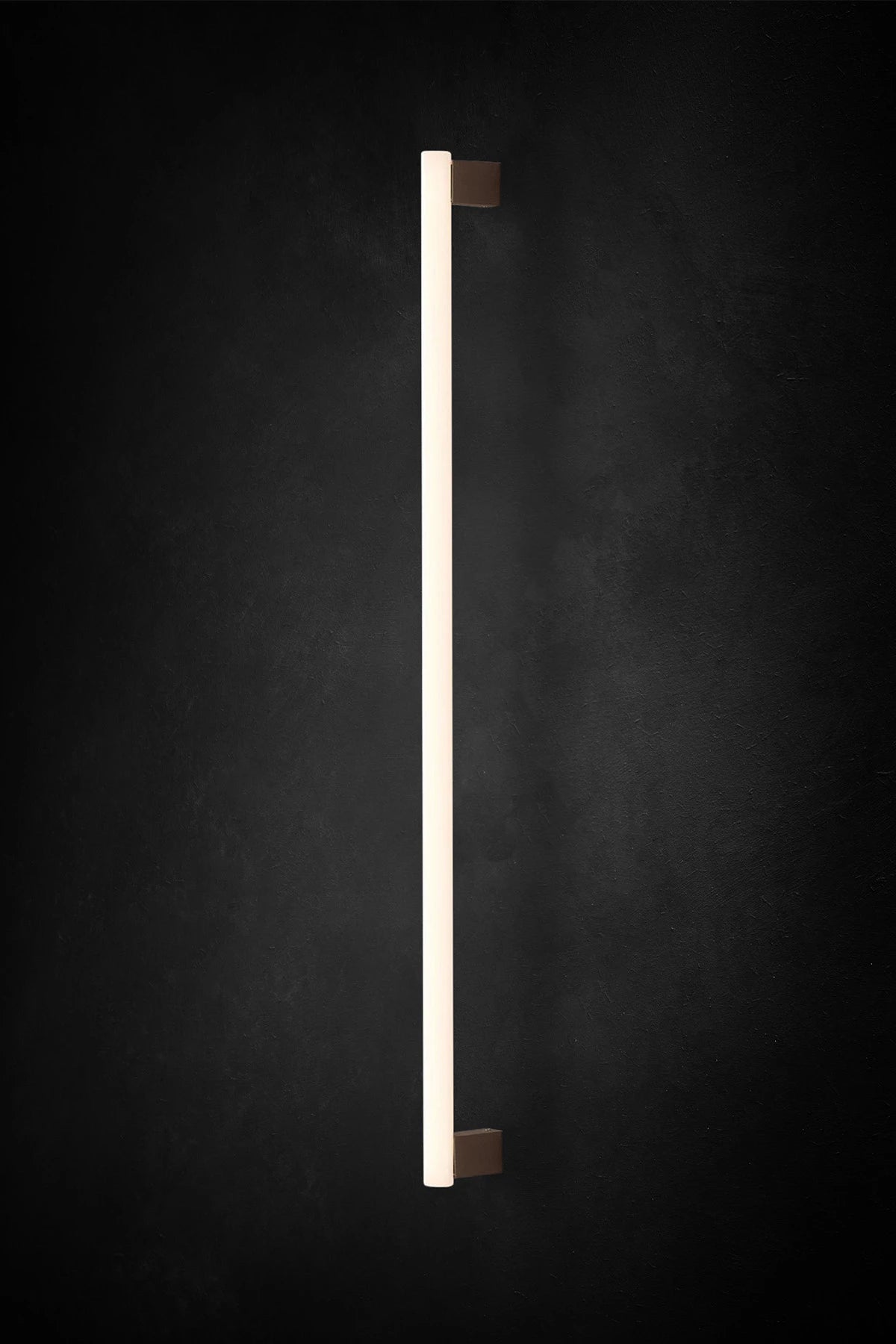

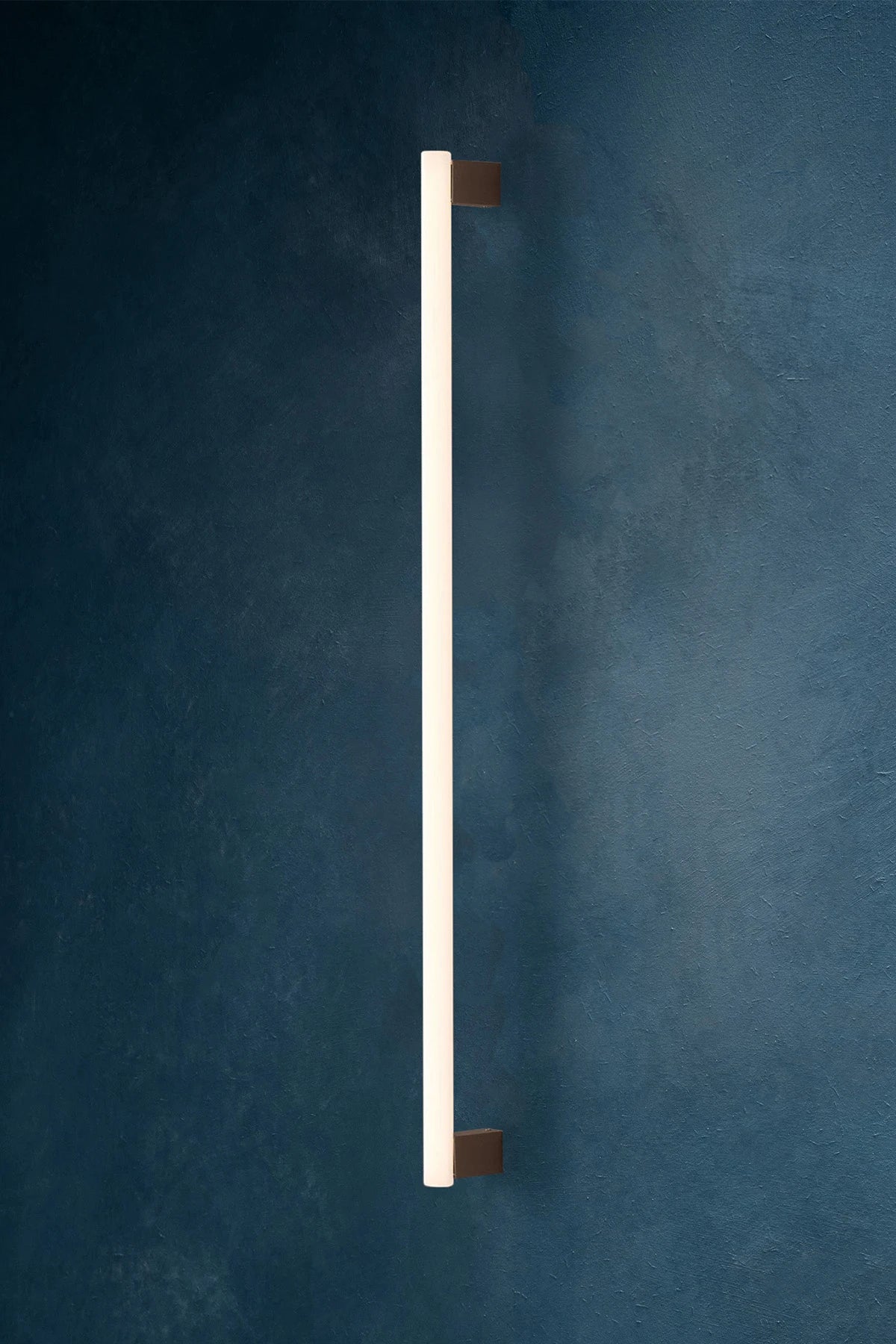

MEA WALL 100

Dimensions:

1000 mm x 28 mm x 80 mm (39.37 in x 1.1 in )

Weight:

0.6 kg (1.1 lb)

Certification:

IP20 CE; ETL; (IP44 on request)

MEA WALL 100 is made from solid brass and available in the following finishes:

040 02 101 - Polished nickel
040 02 201 - Brushed nickel
040 02 202 - Brushed brass
040 02 209 - Black matte
040 02 402 - Aged brass
040 02 208 - Bronze / Patinated brass

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation, ensure the relevant
mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections.

1. Remove the bases from the installation brackets.
2. Affix the brackets to the ceiling/wall with 2 screws
each (hole size max. 4 mm). Connect the units to the
mains.
3. Fix the units back on its base and tighten 4 screws
on the sides.
4. Place the lamp in the luminaire.

LAMP INSTALLATION
- Before commencing installation, ensure the relevant mains supply has been switched off.
- Use supplied fabric gloves to prevent any stains on the surface of the lamp.
- Due to the risk of glass fracture, handle the lamp with care!
- Whilst applying pressure, push the socket into the lamp holder into the marked place. Remove the lamp from the lamp holder carefully with both hands.
