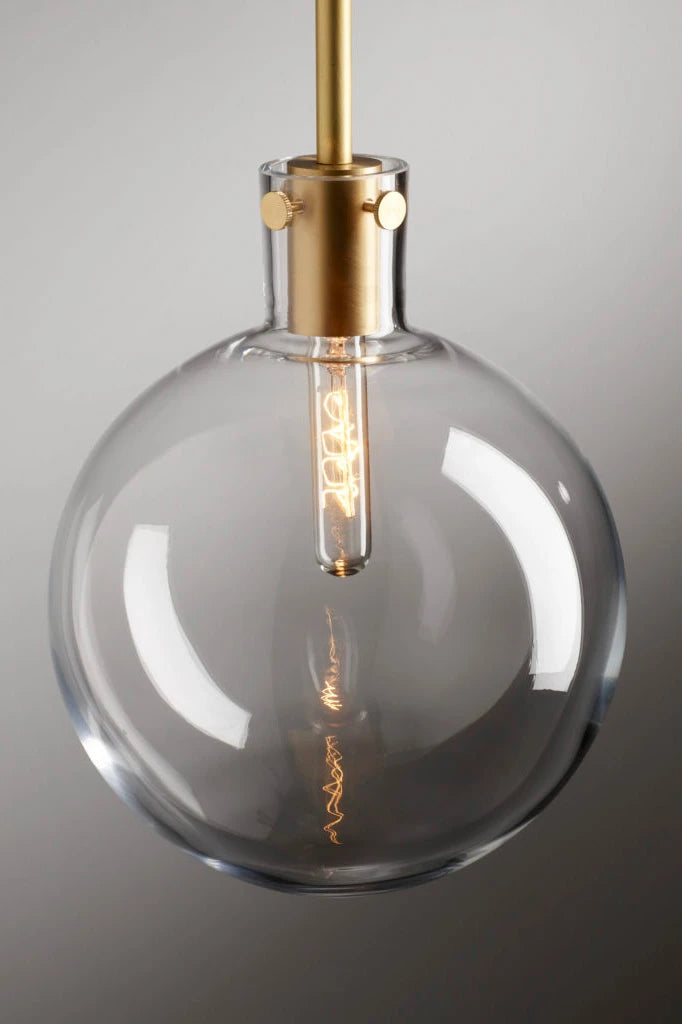

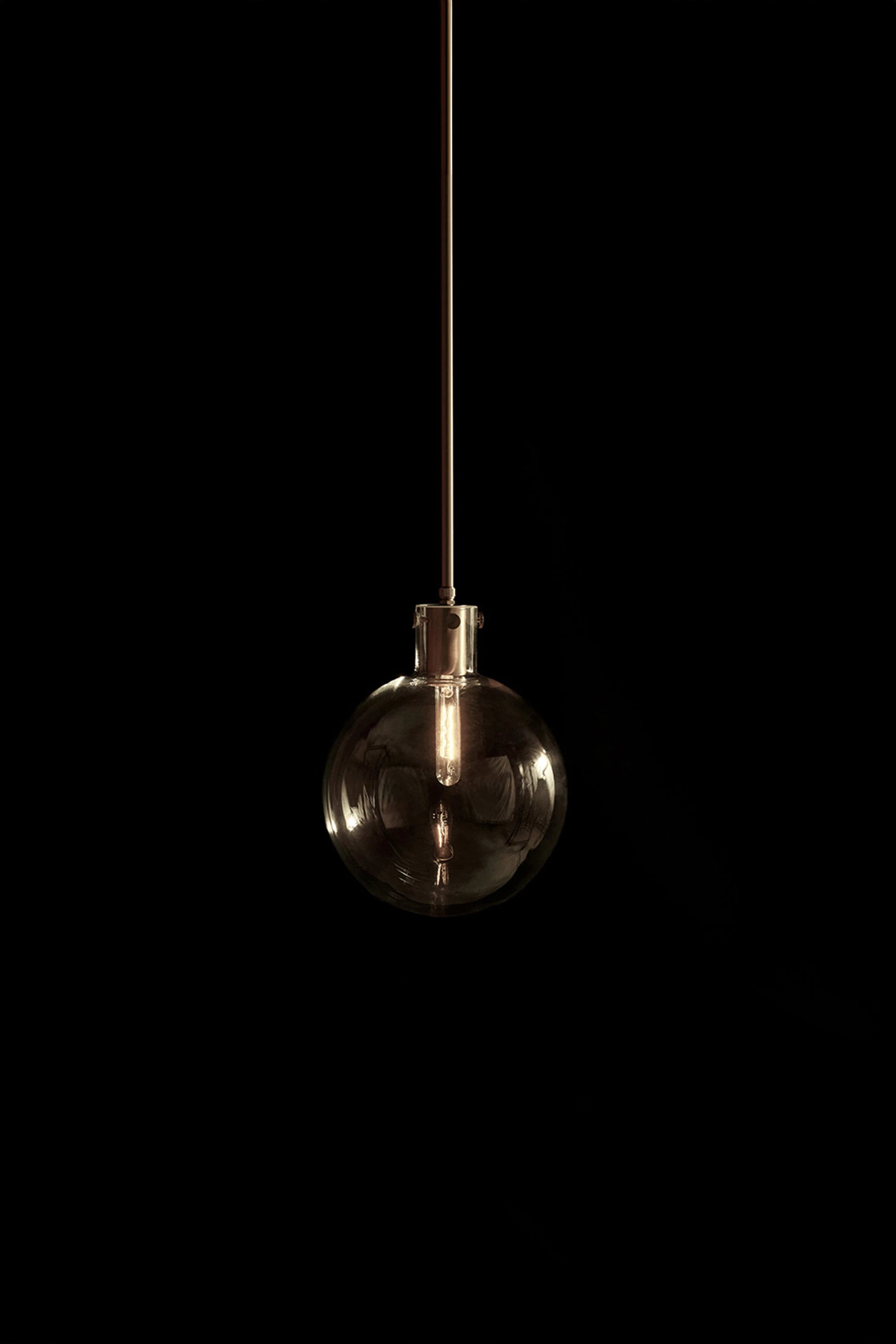

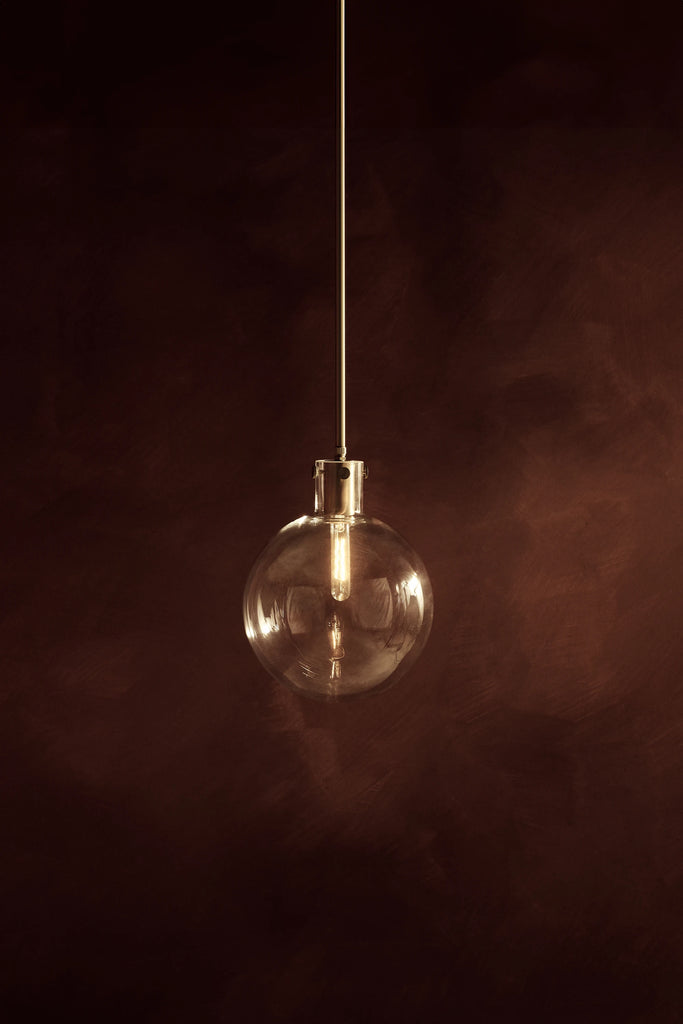

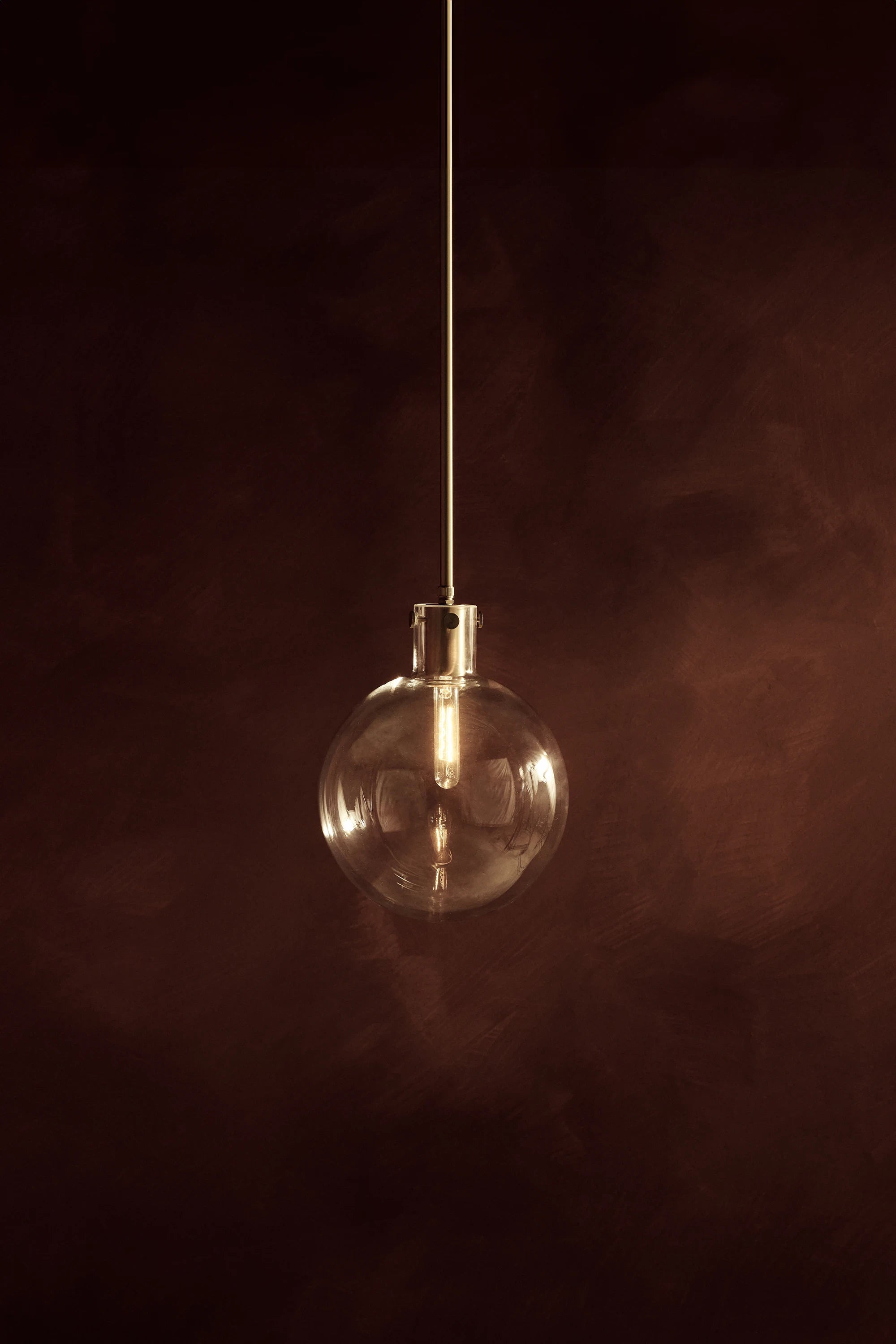

ORA SINGLE PENDANT

Dimensions:

200 mm (7.87 in)

Weight:

2 kg (4.4 lb)

Certification:

IP20 CE

ORA SINGLE PENDANT is made from Solid brass and available in the following finishes:

160 10 201 - Brushed nickel
160 10 207 - Oiled and waxed brass
160 10 209 - Black matte
160 10 402 - Aged brass
160 10 208 - Bronze / Patinated brass

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight and have no loose strands, including factory made connections.

The Mains power must only be switched on once the fitting has been electrically connected to the driver.

1. Fix the ground plate with screws to the ceiling.
2. Put the stem through the ceiling rose.
3. Thread the cables through the ball joint and screw the stem into the ball joint. After that, connect the cable to the clamp on the ground plate.
4. Lastly, fix the ceiling rose with the knurled screw.
5. Adjust the adjustable screws to the glass ball opening. There has to be a minimum of 1 mm distance between the metal and the glass.
6. Screw in all bulbs, then switch on the circuit and test if the bulbs are functioning. With transportation, the lamp holders might get interfered, and the bulb will not connect correctly. In this case, please disconnect the lighting fixture from the circuit, and bend the contact brackets slightly to ensure that the bulbs and the lamp holder are connected.
7. Carefully secure the glass sphere.
8. Carefully fix loosely with the supplied knurled-head screw by hand.
Do not use a screwdriver. Do not screw too tightly, and ensure there is at least 1 mm tolerance between the glass and the screw.

KAIA Care Instruction and Patination
