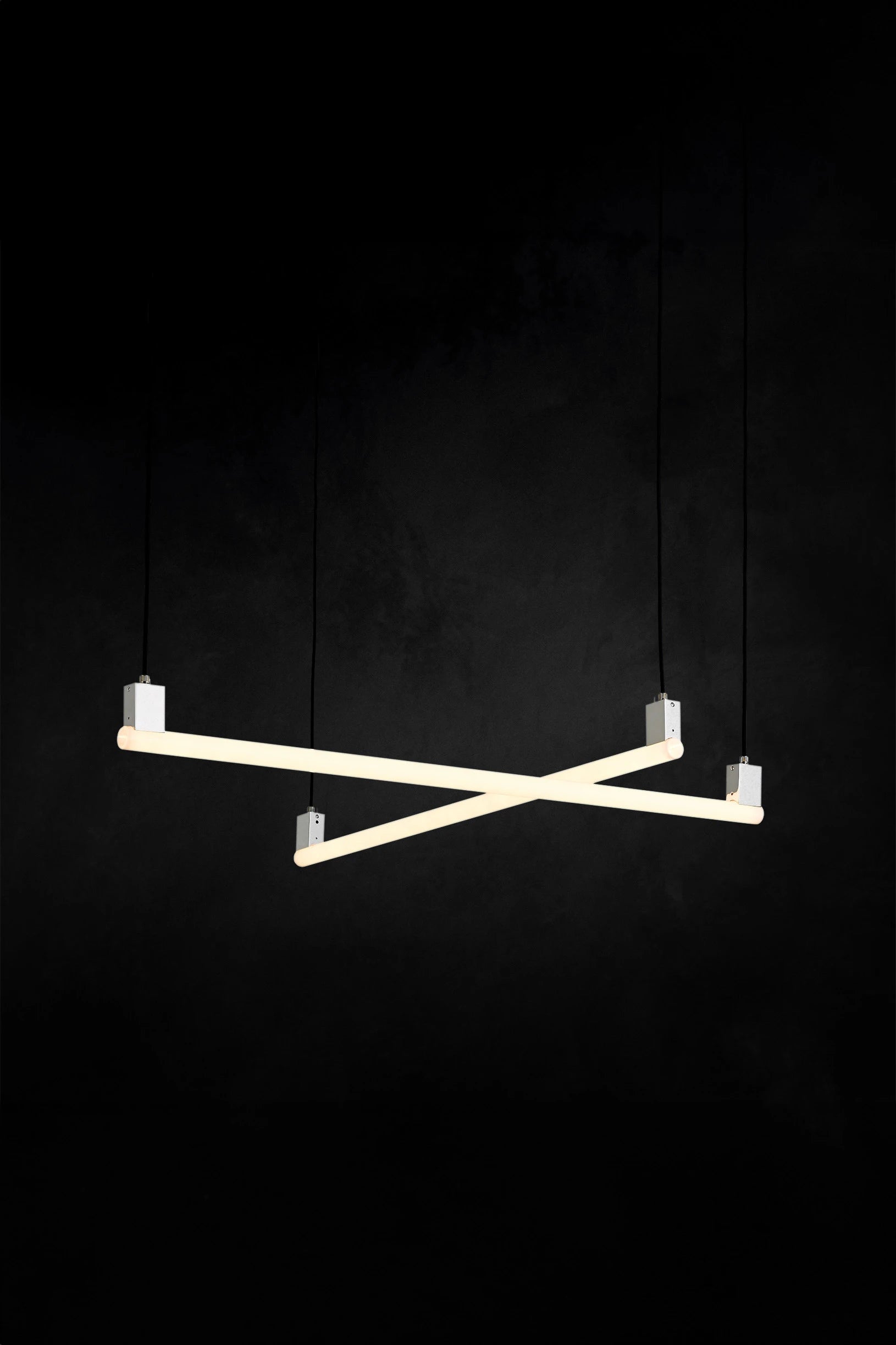

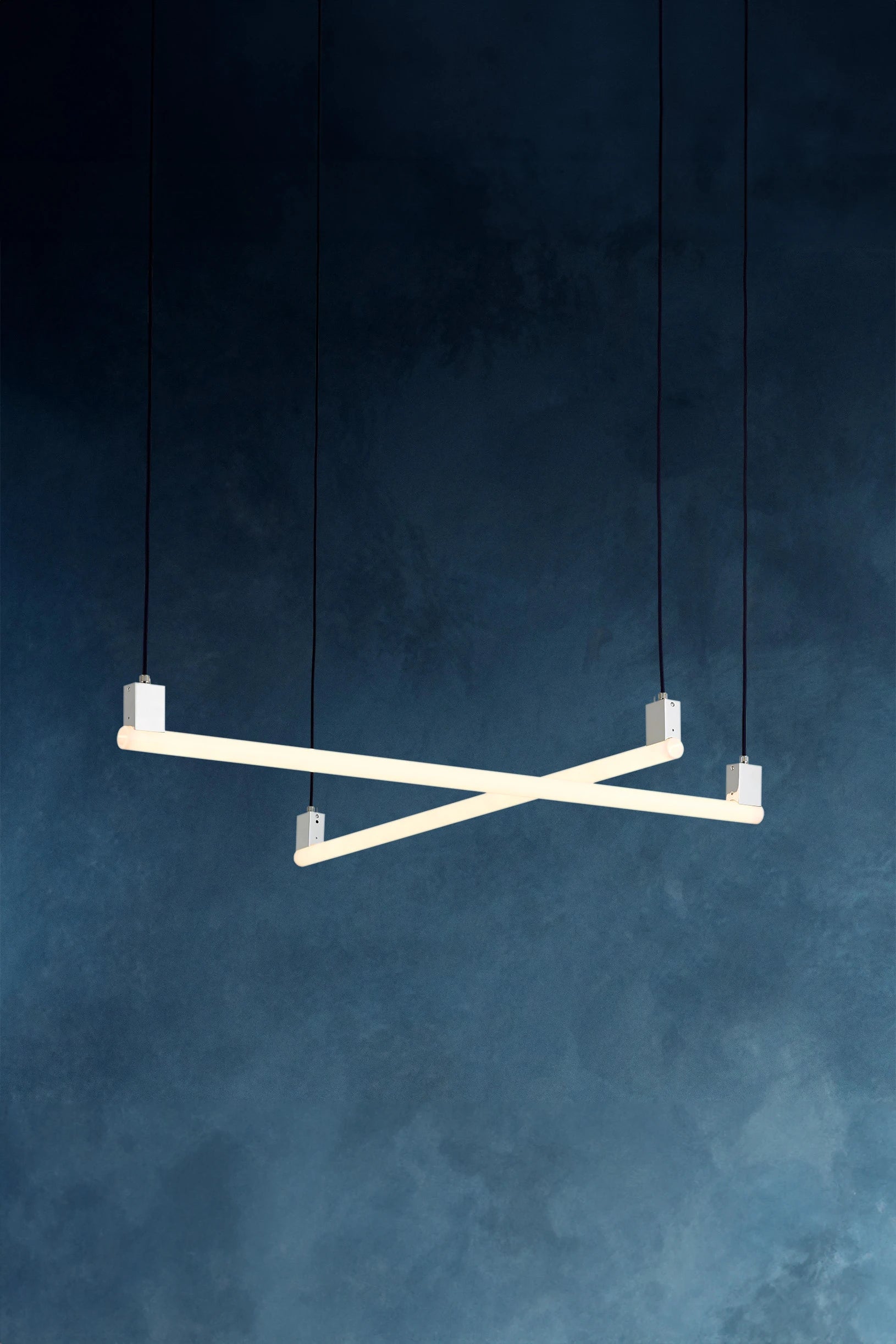

MEA SUSPENSION 100

Dimensions:

1000 mm x 80 mm (39.37 in x 3.15 in)

Weight:

1.1 kg (2.4 lb)

Certification:

IP20 CE; ETL

MEA SUSPENSION 100 is made from Solid brass and available in the following finishes:

040 01 202 12 - Brushed brass c/w black fabric cable
040 01 101 12 - Polished nickel c/w black fabric cable
040 01 201 12 - Brushed nickel c/w black fabric cable
040 01 209 12 - Black matte c/w black fabric cable
040 01 402 12 - Aged brass c/w black fabric cable
040 01 208 12 - Bronze / Patinated brass c/w black fabric cable

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections.

1. Prepare a 6 mm opening in the ceiling
(distance between the points 940mm).
2. Feed the cable through the hole. Make the
connections, please ensure that both Earth Wires are connected.
3. Place the lamp in the luminaire.

Mainly suitable for installation onto plaster walls and joinery. If no plaster ceiling and joinery is available, a frame can be added.

For further information, please see NEA Plate
Mounting Instructions and contact sales@kaialighting.com.

KAIA Care Instruction and Patination
