EON SUSPENSION 100 SET 2

By KAIA

‘A line with system‘

The elegant linear pendant light design is crafted from nickel-plated, polished brass and can be combined to form an endless variety of lighting options. The fixtures holding each glass tube in place are intelligently designed as connective modules.

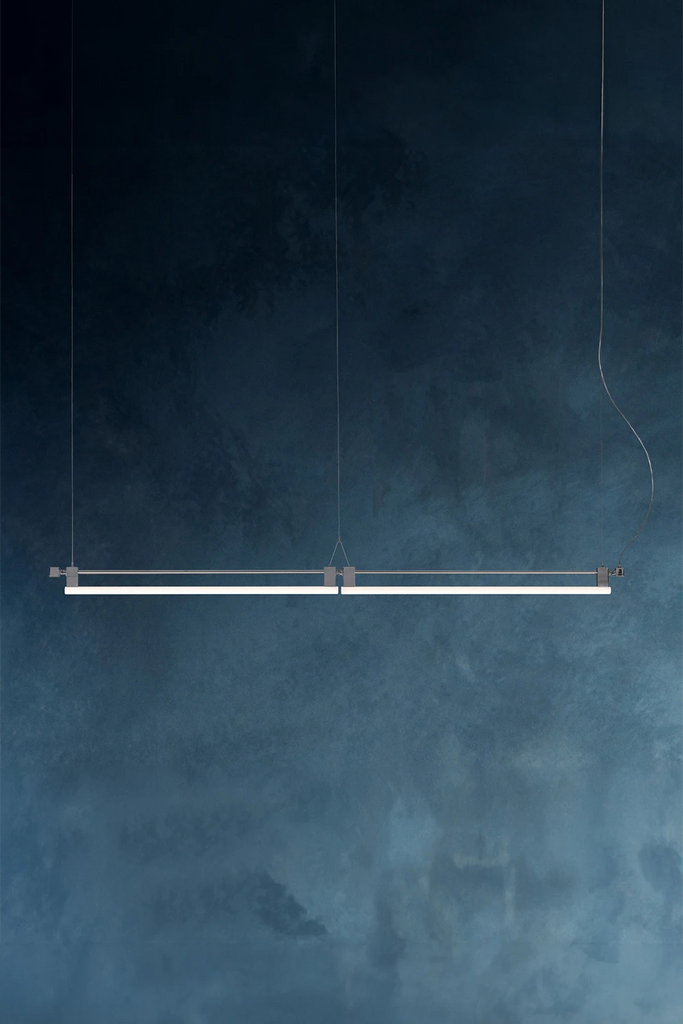

This design from EON collection features two centrally connected lights to create a linear lighting object. This is suspended from the ceiling by three transparent cables. Clean, linear and clever lighting for the contemporary home.

Designed by Peter Straka
Handmade by KAIA

Need a replacement lamp?

DOWNLOADS

PRODUCT SPECIFICATIONS

Dimensions:

2110 mm x 100 mm (83.07 in x 3.94 in )

Weight:

2.4 kg (5.29 lb)

Certification:

IP20 CE; ETL

MATERIALS & FINISHES

EON SUSPENSION 100 SET 2 is made from Solid brass and available in the following finishes:

070 03 101 11 - Polished nickel c/w transparent cable
070 03 209 12 - Black matte c/w black fabric cable

DELIVERY & RETURNS

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

MOUNTING INSTRUCTIONS

Before commencing installation ensure the relevant mains supply has been safely isolated/disconnected. Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections.

1. Ceiling Rose: Remove the base from the installation
bracket. Affix the bracket to the ceiling with 2 screws
(hole size max. 4.5 mm, 50 mm apart).
Wire Holder: Unscrew the main body from the
threaded mounting block and mount on the ceiling.
2. Ceiling Rose: Connect the unit to the mains.
Wire Holder: Pass through wire rope firmly into
the main body until it locks in place.
3. Ceiling Rose: Fix the unit back on its base and
retighten 2 screws on the side.
Wire Holder: Screw wire rope into the rope fixing
and cut the remaining wire.
4. Connect the lamp body to other lamp bodies
(if necessary) and then to the power.

CARE INSTRUCTIONS & PATINATION
