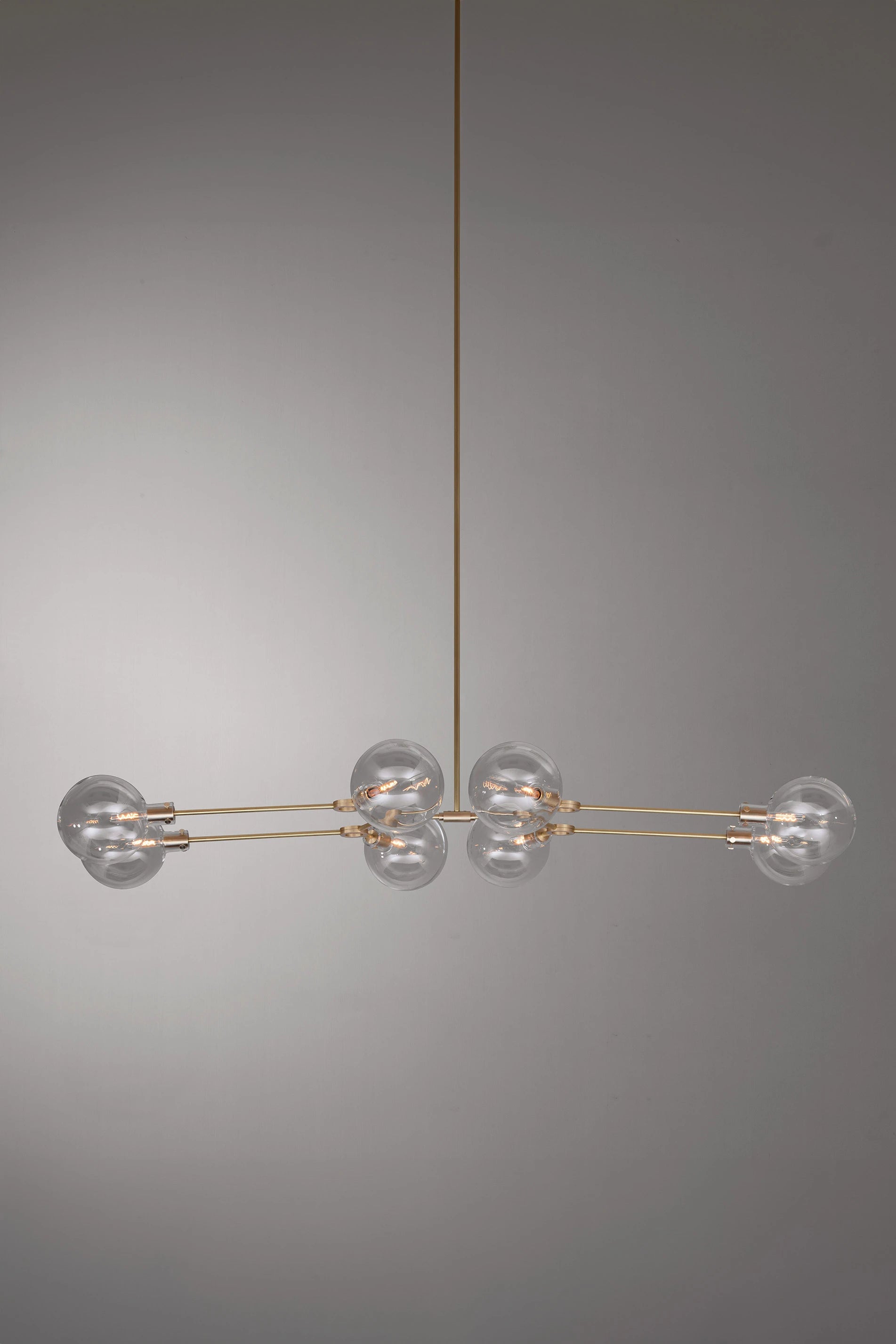

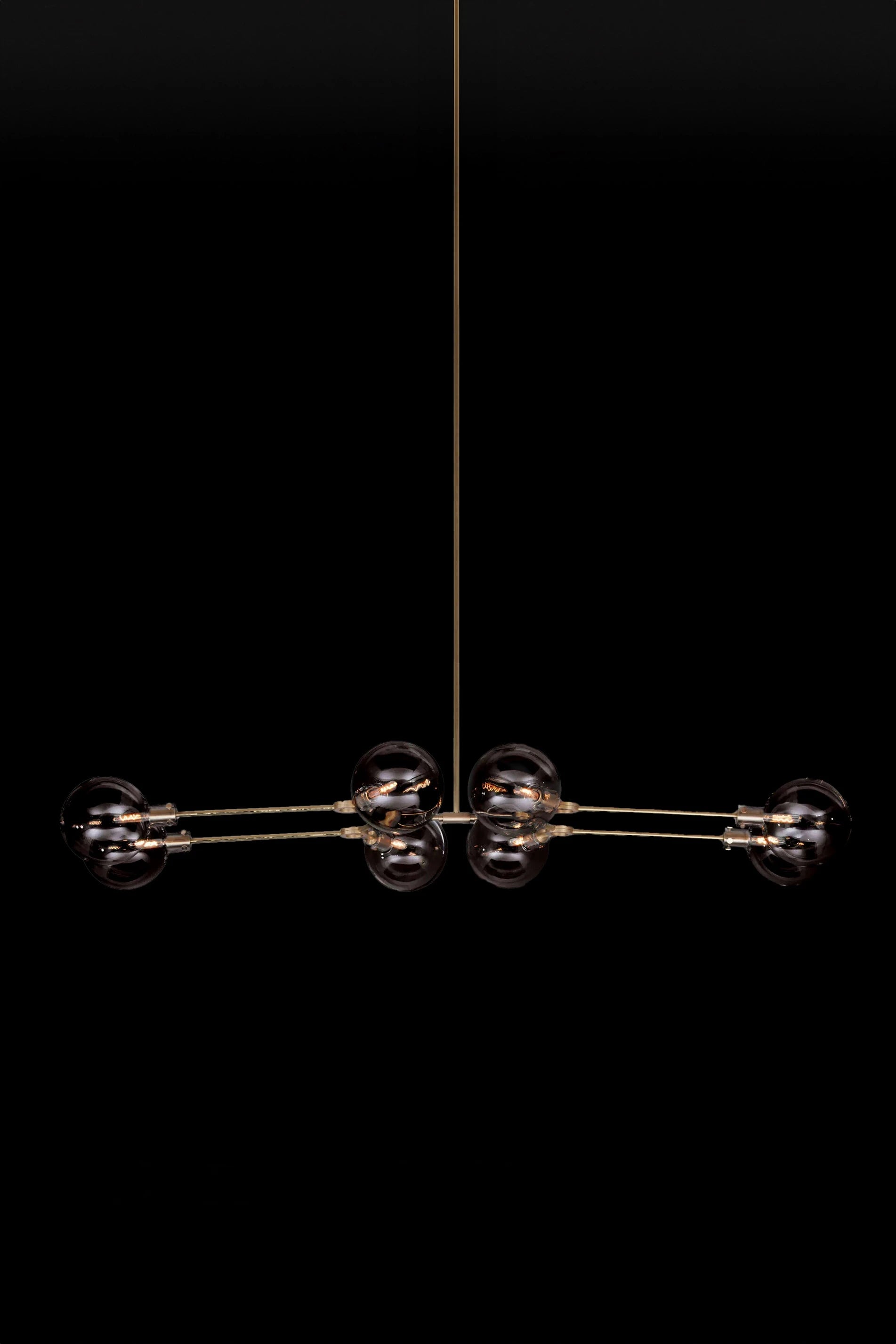

ORA 8 SYMMETRICAL CHANDELIER

By KAIA

Available in the following length (total drop): 935mm

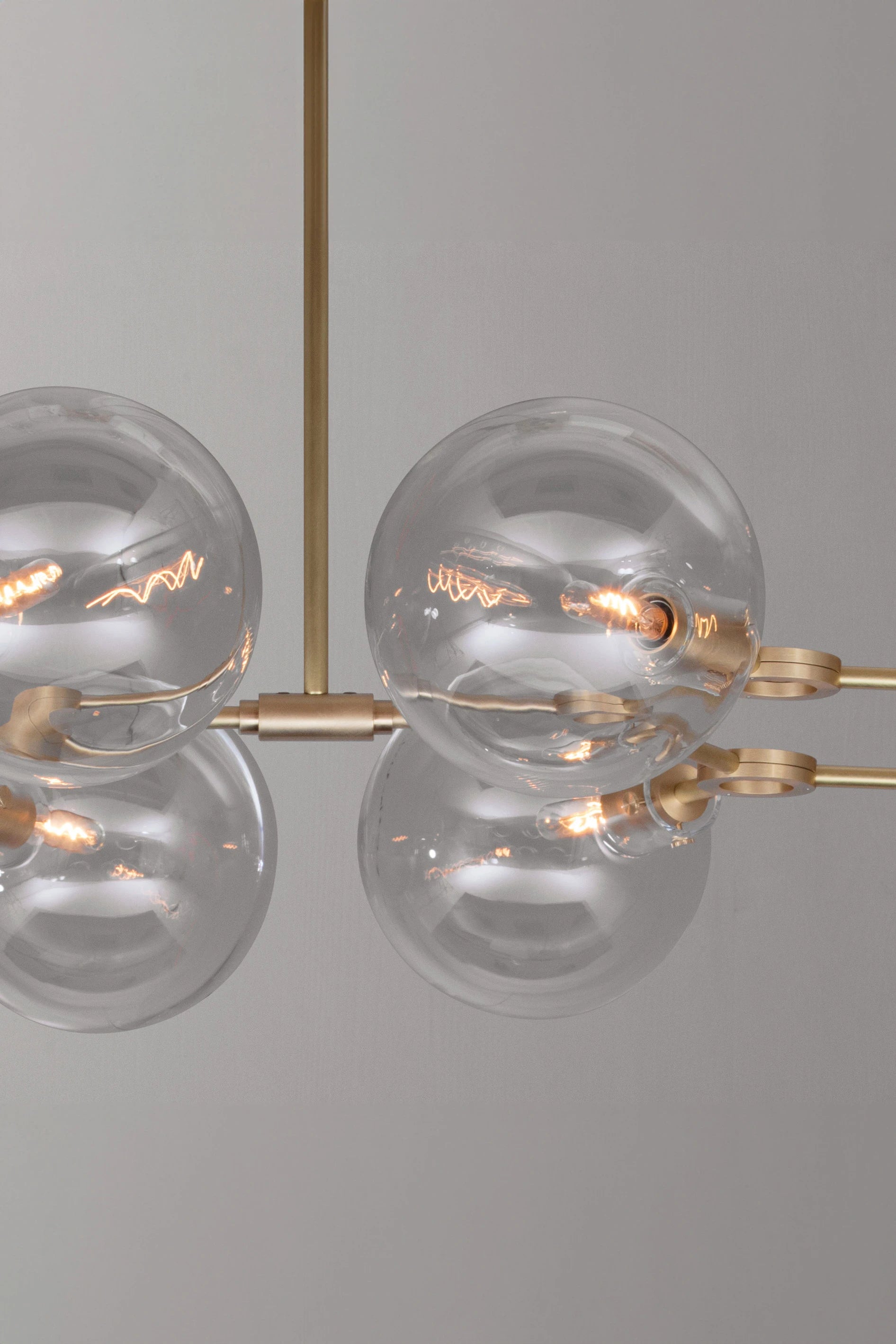

Perfection comes to the fore in our modern glass chandeliers like the ORA SYMMETRICAL. An even network of hand-crafted brass rings and stems hold in place eight hand-blown glass spheres. Its brass network fuses form and function and is moveable to allow the piece to be designed into endless compositions – from simple to complex. The result is a rigorous and intriguing centrepiece chandelier that captures KAIA’s essence at the boundary of technicality and artistry, a delicate constellation of stars lighting up the room

Designed by Peter Straka
Handmade by KAIA

Need a replacement lamp?

DOWNLOADS

PRODUCT SPECIFICATIONS

Dimensions:

1750 mm x 850 mm x 200 mm (68.89 in 33.46 in 7.87 in)

Weight:

12 kg (26.4 lb)

Certification:

IP20 CE

MATERIALS & FINISHES

ORA 8 SYMMETRICAL CHANDELIER is made from Solid brass and available in the following finishes:

160 05 207 - Oiled and waxed brass
160 05 209 - Black matte
160 05 201 - Brushed nickel
160 05 402 - Aged brass
160 05 208 - Bronze / Patinated brass

Clear glass with nickel and brass finishes, smokey grey with patinated brass finish as standard.

DELIVERY & RETURNS

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

MOUNTING INSTRUCTIONS

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made
connections. The Mains power must only be switched on once the fitting has been electrically connected to the driver.

Please note the chandelier has a rigid structure - the ring connectors are NOT adjustable!

1. Mount the glass balls, starting from the inside to the outside.
2. Adjust the adjustable screws to the glass ball opening. There has to be a minimum of 1 mm distance between the metal and the glass.
3. Screw in all bulbs, then switch on the circuit and test if the bulbs are functioning.
With transportation, the lamp holders might get interfered, and the bulb will not connect correctly. In this case, please disconnect the lighting fixture from the circuit, and bend the contact brackets slightly to ensure that the bulbs and the lamp holder are connected.
4. Carefully secure the glass sphere.
5. Carefully fix loosely with the supplied knurled-head screw by hand.
Do not use a screwdriver. Do not screw too tightly, and nsure there is at least 1 mm tolerance between the glass and the screw.

CARE INSTRUCTIONS & PATINATION
