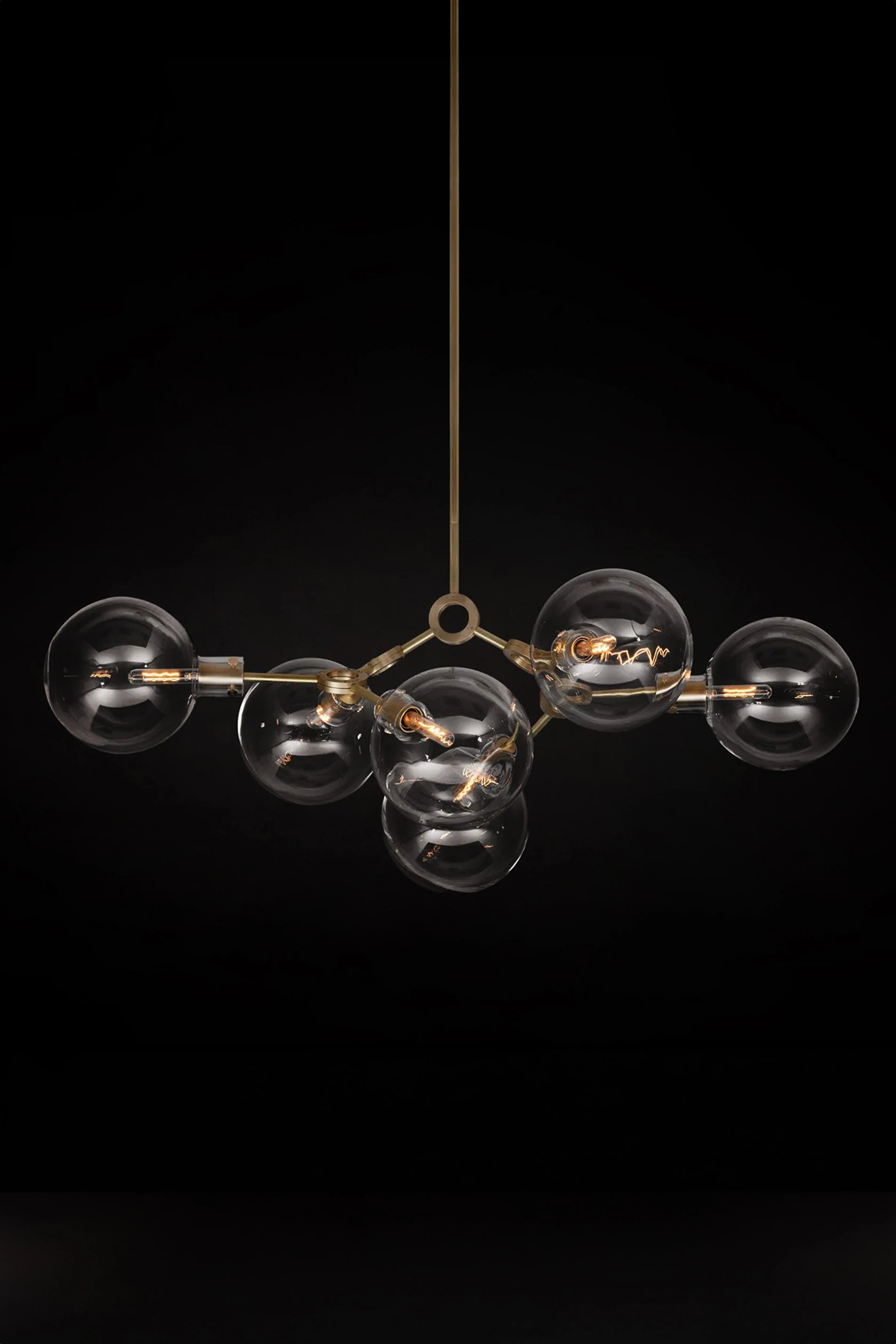

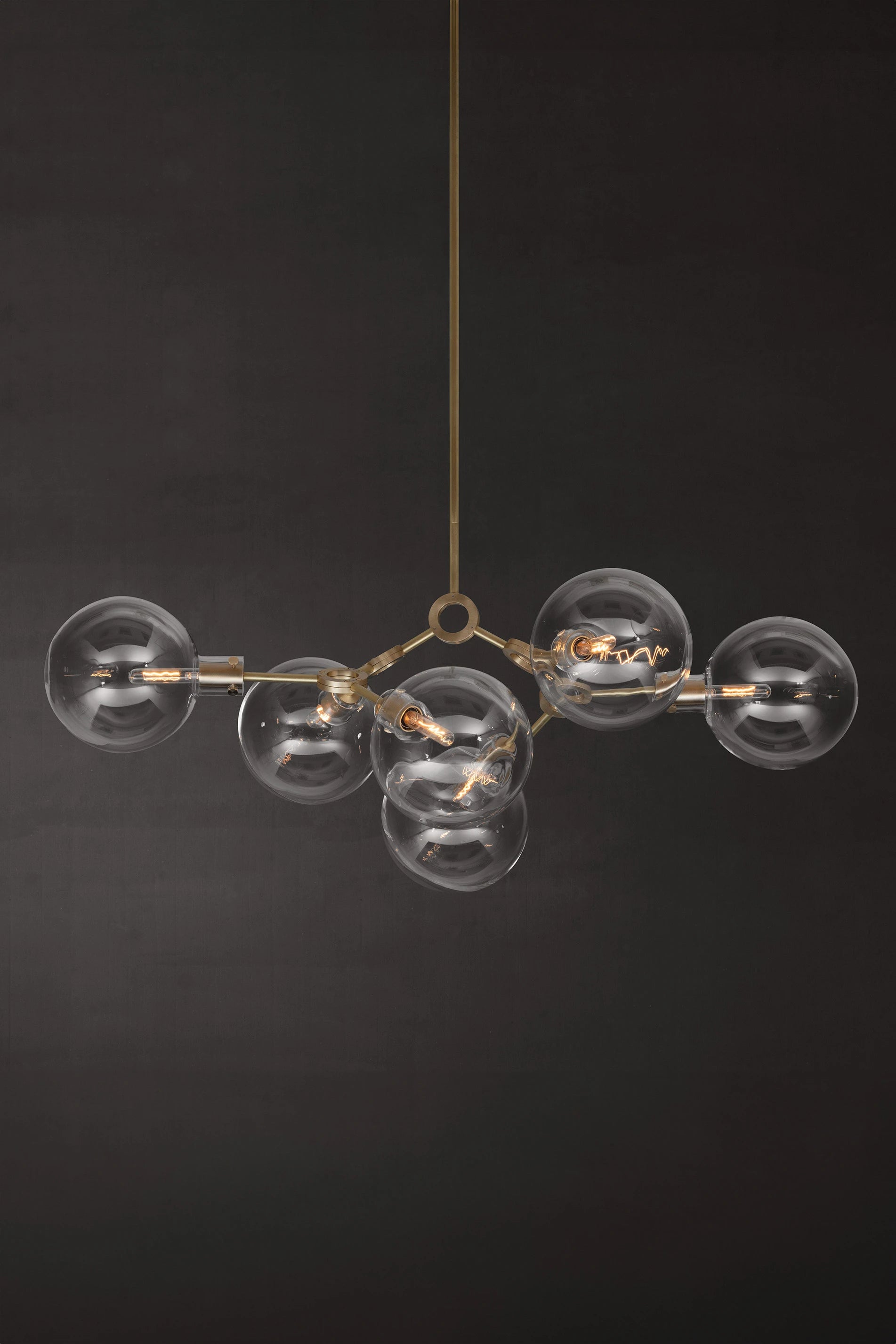

ORA 6 COMPACT CHANDELIER

By KAIA

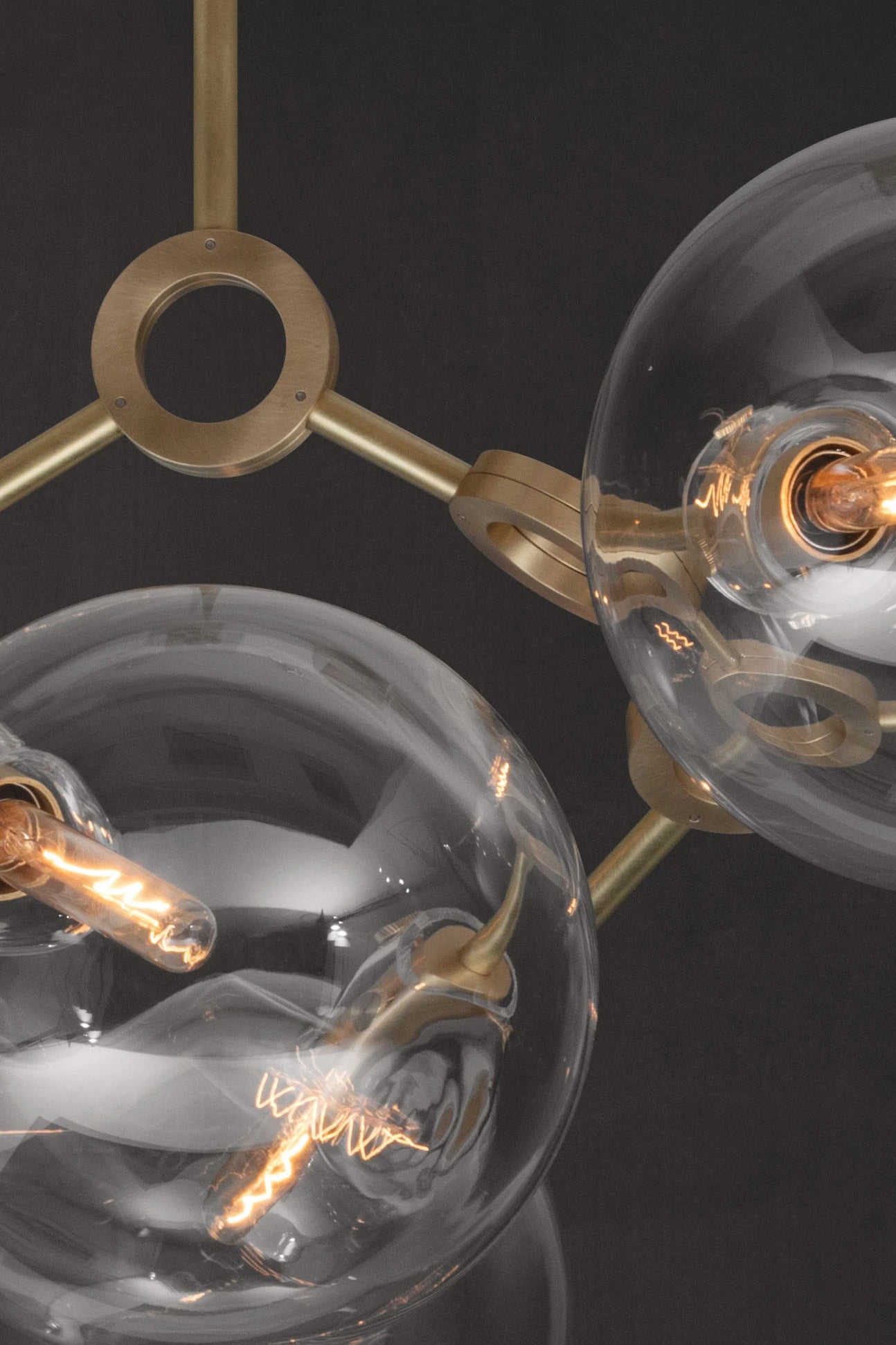

Each glass sphere in ORA Compact this chandelier is hand-blown, and each of them is connected by a tightly packed network of solid brass stems and rings. The result is modern chandelier lights, small but perfectly formed centrepieces that snake across the ceiling like a delicate constellation of stars lighting up the room. Its rigorous brass network fuses form and function, allowing the piece to be designed into endless compositions to suit the aesthetic of any space.

Designed by Peter Straka
Handmade by KAIA

Need a replacement lamp?

DOWNLOADS

PRODUCT SPECIFICATIONS

Dimensions:

1000 mm x 700 mm x 360 mm (39.27 in x 27.56 in x 14.17 in)

Weight:

12 kg (25.45 lb)

Certification:

IP20 CE

MATERIALS & FINISHES

ORA 6 COMPACT CHANDELIER is made from Solid brass and available in the following finishes:

160 03 201 - Brushed nickel
160 03 207 - Oiled and waxed brass
160 03 209 - Black matte
160 3 402 - Aged brass
160 03 208 - Bronze / Patinated brass

DELIVERY & RETURNS

For ‘off-the-shelf’ Goods purchased through Our Site, the Goods will normally be delivered within one – four weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For ‘customised line’ Goods purchased through Our Site, the Goods will normally be delivered within eight – fourteen weeks after the date of payment receipt unless otherwise agreed or specified during the ordering process.

For more information, please refer to our trade B2B and retail B2C Terms and Conditions.

MOUNTING INSTRUCTIONS

Before commencing installation, ensure the relevant mains supply has been safely isolated/disconnected.

Installation should be carried out by a qualified electrician. Ensure all electrical connections are tight with no loose strands, including factory made connections.

The Mains power must only be switched on once the fitting has been electrically connected to the driver.

Please note the chandelier has a rigid structure - the ring connectors are NOT adjustable!

1. Mount the glass balls, starting from the inside to the outside.
2. Adjust the adjustable screws to the glass ball opening. There has to be a minimum of 1 mm distance between the metal and the glass.
Screw in all bulbs, then switch on the circuit and test if the bulbs are functioning.
With transportation, the lamp holders might get interfered, and the bulb will not connect correctly. In this case, please disconnect the lighting fixture from the circuit, and bend the contact brackets slightly to ensure that the bulbs and the lamp holder are connected.
3. Carefully secure the glass sphere.
4. Carefully fix loosely with the supplied knurled-head screw by hand.
Do not use a screwdriver. Do not screw too tightly, and ensure there is at least 1 mm tolerance between the glass and the screw.
